OPTO-ELECTRONIC PERFORMANCE

Sensor format 1

2048 pixels with 2048 readout ADCs on 10 μm pitch

Optical aperature (pixel height)1

210 μm or 10 μm

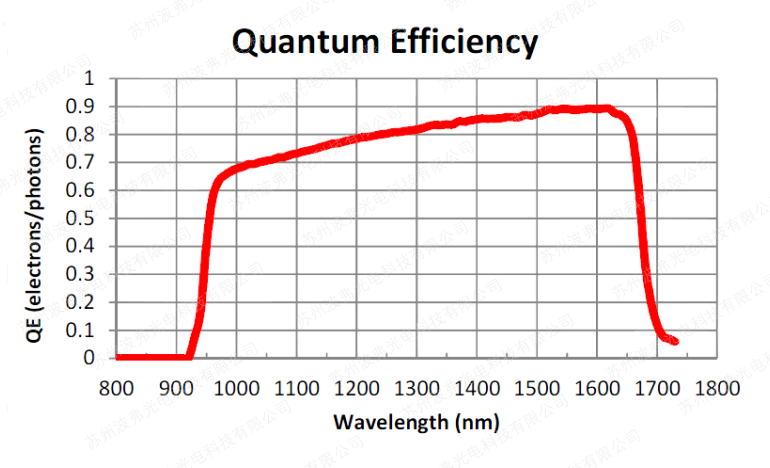

Quantum efficency1

> 60% over 0.98 μm-1.65 μm; > 70% peak response @ 1.55 μm

Gain setting

Temporal noise (rms counts)1 2

High

Medium High

Medium Low

Low

Typical

Specification

Typical

Specification

Typical

Specification

Typical

Specification

3.1

< 3.4

2.2

< 2.8

1.9

< 2.3

1.7

< 1.9

Dynamic range1,2

> 1200:1

> 1450:1

> 1750:1

> 2100:1

Differential non-linearity1,2

+/- 1.1

< +/- 2.5%

+/- 1.5

< +/- 2.5%

+/- 1.5

< +/- 2.5%

+/- 1.5

< +/- 2.5%

Bad pixel specification

White, dark, noisy or pixels exceeding +/- 20 % of the mean value when illuminated at 50% of full well.

Number of bad pixels limited to a maximum of 1% of array total; on-board pixel replacement function

Exposure time1,3

5.5 μs to 10 ms, user programmed in pixel clock cycles or via the width of the ext. trigger

Trigger modes 3

Free run, single line per trigger (exposure set by camera), or variable exposure

External trigger 3

Via CC1 signal line in Camera Link cable

External variable ET

User set by the duration of trigger input signal (minimum exposure time pulse: 5.5 μs)

External trigger jitter

+/-2.5 clock cycles: nominally 63 ns variation

Pixel rate

2048L:157 Mpix/s with 2 x 12-bit words transferred on each Camera Link strobe clock at 80 MHz

Digital output format

12-bit base Camera Link?;

recommend NI PCIe-1433 or frame grabber with throughput of > 313 Mbytes/s to PC motherboard

 (minimum of 4 bi-directional PCIe express lanes in PC)

Readout mode

Integrate-While-Read, differential double sampling

Corrections (preset OPR)

Factory calibrated gain, offset, and bad pixel replace.

REGULATORY COMPLIANCE

CE:

Meets class A for emission, immunity & ESD standards, RoHS

FCC:

Meets requirements for Part 15, Subpart B, Class A, 2006

ENVIRONMENTAL & POWER

Operating Case Temperature

+10°C to +35°C

Storage Temperature

-10°C to 60°C

Humidity

Up to 95% and non-condensing

Power Requirements:
AC Adapter Supplied
DC Voltage
Typical Power

100–240 VAC, 47–63 Hz
+6 to 12 VDC (Maximum: 13.1 VDC)
3.6 W at 30°C case temp1

In-rush Current

1.25 A @ 12 VDC

MECHANICAL

Width x Height x Depth:

8.3 cm x 10.2 cm x 1.6 cm (excludes I/O connectors, and lens adapter)
3.25 in x 4 in x 0.64 in (excludes I/O connectors, and lens adapter)

Weight:

< 240 g or 8.6 oz (no lens or adapter)

Threaded Lens Mount

M42x1-6H (focus point ~6 mm from camera surface)

Optional Lens Mount Adapters

C-Mount adapter or adjustable distance F-Mount adapter (see ordering info)

Spectrometer Mount

4 tapped 8-32 holes in 2 inch square pattern,
2 tapped 8-32 holes in-line with image axis,
O-Ring light seal, 1.9 inch diameter, 1/16th thickness

Camera Tripod
Mount

2 tapped?-20 holes, one on bottom, one on side wall.

ORDERING INFORMATION

Camera Model

Part number

Max. Line rate

Pitch

Pixels

FPA length

Aperture (height)

Classification

GL2048L-10A-ENC-STD-210

8000-0596

76,263 lps

10 μm

2048

20.48 mm

210 μm

EAR99

GL2048L-10A-ENC-STD-010

8000-0597

76,263 lps

10μm

2048

20.48 mm

10 μm

6A003.b.4.a
